Do you work in the field with heavy machinery? If so, are you prepared if something goes wrong on a remote job site? Putting together an emergency field welding kit can save you from a full equipment shutdown when you’re miles from the nearest shop. Here’s what to include in these kits so you can address a variety of repairs on the spot, without waiting on a service call or hauling equipment back to a facility.
A Reliable Portable Welder
Your welder is the foundation of the whole kit. For field work, an inverter-based MIG or stick welder is your best option because both run on standard power sources and are compact enough to transport.
Stick welders have an edge in outdoor conditions because wind doesn’t affect the arc the way it does with MIG. If you’re working in areas with generator power, check the welder’s input voltage before you buy. A unit that can switch between 110V and 220V gives you more flexibility when power sources vary from site to site.

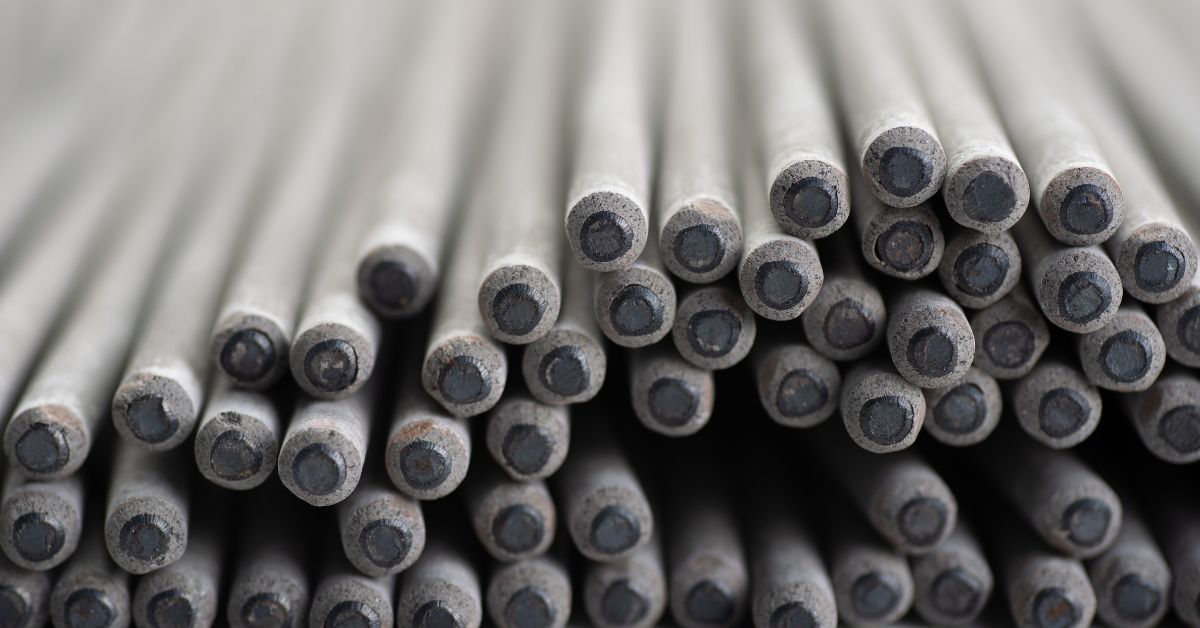

The Right Electrodes for the Job
Not every electrode works on every metal, and heavy machinery is rarely made from a single alloy. E6010 and E6011 rods cut through rust and mill scale, which makes them useful for field repairs where the base metal isn’t pristine.
E7018 gives you a higher-strength weld on structural steel when surface prep is possible. If you’re working on cast iron components, keep a separate set of nickel-based electrodes on hand. Cast iron cracks differently than steel, and using the wrong rod will leave you with a weld that fails under load.
A Portable Generator
Field sites don’t always have accessible power. A generator rated between 5,000 and 8,000 watts covers most portable welders without straining the unit.
Pay attention to the generator’s surge capacity, not just its running wattage, because welders draw a spike of power when the arc starts. Dual-fuel generators add another layer of reliability since you can switch between gasoline and propane depending on what’s available. Keep the generator serviced and test it before the job, not after something breaks.
Angle Grinder and Grinding Discs
Surface prep directly affects weld quality. An angle grinder lets you clean rust, remove cracked welds, and bevel edges before you lay a new bead. For field repairs, a 4.5-inch cordless grinder keeps things portable without sacrificing much cutting power.
Bring both grinding discs and cutting discs since each does a different job. Grinding discs remove surface material; cutting discs slice through metal. Running out of the right disc mid-repair slows everything down, so pack extras of both.
Welding Clamps and Magnets
Holding metal in position while you weld solo is one of the more frustrating parts of field repair. Welding clamps keep pieces aligned while you tack the joint, and magnetic squares hold metal at a fixed angle without needing a second set of hands.
For heavy machinery repairs, bring a few C-clamps with deep throats so you can reach across wider flanges and brackets. Locking pliers also pull double duty here. They’re not glamorous, but they’re the kind of thing you’ll miss immediately if they’re not in the kit.
Chipping Hammer and Wire Brush
Stick welding produces slag, and that slag needs to come off before you inspect the weld or add another pass. A chipping hammer knocks the bulk of it loose, and a wire brush cleans up what’s left.
Skipping the cleanup makes it harder to spot defects in the weld bead. If you’re doing multi-pass welds on thicker material, cleaning between passes isn’t optional. Slag trapped under a subsequent pass creates a weak point that can fail under the stress loads heavy machinery puts on a repair.
Filler Alloys and Specialty Rods
Beyond standard electrodes, your kit should include filler alloys suited to the specific metals you’re likely to encounter. Aluminum repairs need aluminum filler rod; you can’t substitute steel electrodes and expect a sound joint.
If your equipment includes bronze bushings or copper components, silver-bearing alloys give you a low-temperature option that bonds without overheating the surrounding metal. Think through the metals on your specific machinery and build the alloy selection around what’s actually there, not a generic list.
Welding Helmet with Auto-Darkening Lens
A fixed-shade helmet slows you down in the field because you’re constantly flipping it up to reposition and down to strike an arc. An auto-darkening helmet shifts to the correct shade the moment the arc starts, which keeps both hands free for positioning.
For outdoor field work, look for a lens with a wide sensitivity range so it reacts in bright sunlight as well as shade. Solar-powered models work well in outdoor conditions; battery-dependent models are more reliable when you’re working in low light.
Heat-Resistant Welding Gloves
Thin gloves give you better dexterity but less protection from spatter and radiant heat. Heavier leather gloves protect your hands during stick welding but make it harder to feel what you’re doing on precise work.
For a field kit, keep two pairs: one heavier pair for stick and one lighter pair for any fine positioning work. Gloves take a beating in the field, and a burned-through glove mid-job is more than inconvenient. Replace them before they wear through, not after.

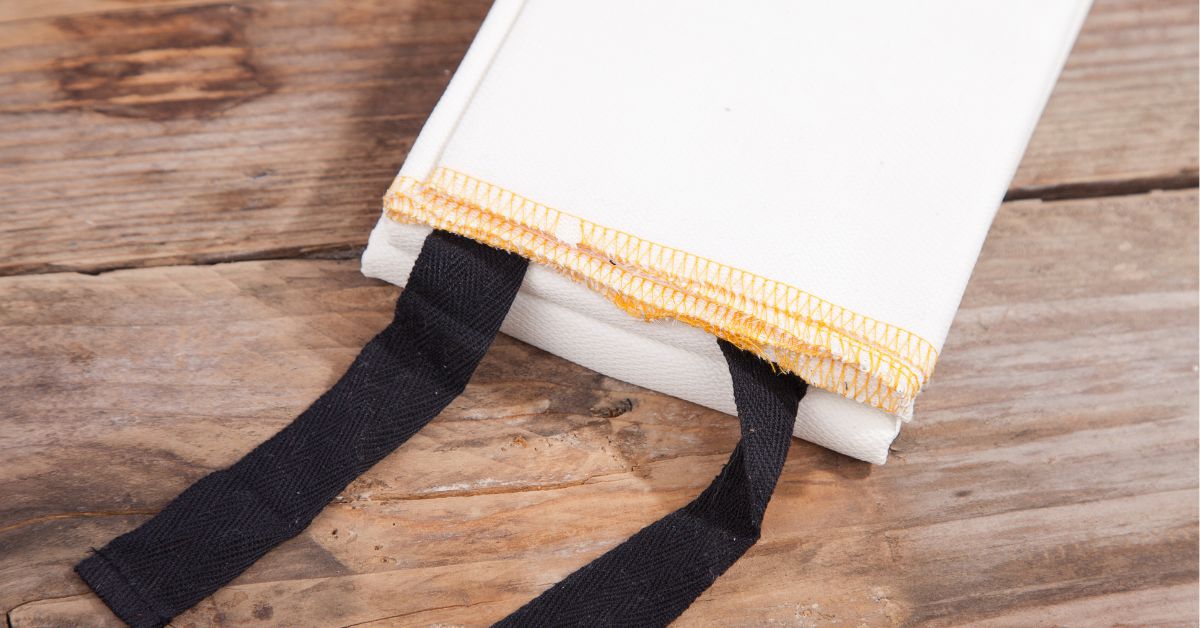

Fire Blankets and Welding Blankets
Field welding means working near hydraulic lines, fuel tanks, and dry vegetation that won’t survive a stray spark. Welding blankets made from fiberglass or carbon fiber resist temperatures well above what a standard weld produces and can be draped over nearby components to protect them during the repair.
Fire blankets serve a different purpose: they’re for smothering a small fire if one starts. Both take up minimal space in the kit, and having them on hand keeps flames from reaching fuel, hoses, or nearby equipment.
Anti-Spatter Spray
Spatter sticks to surrounding metal and creates rough surfaces that interfere with moving parts. Anti-spatter spray applied to the work area before you weld keeps the beads from bonding to the base metal outside the joint.
It’s especially useful when you’re working near finished surfaces or close-tolerance components that can’t have extra material built up on them. A single can goes a long way, and the cleanup time you save on the back end of a repair makes it an easy addition to the kit.
What to Do Before the Next Job Starts
Putting together an emergency field welding kit for heavy machinery can be a lifesaver on a remote job site where you may not be able to get a technician out quickly or transport equipment to a shop. Include the items covered above and you’ll be equipped to handle many of the most common field repairs without unnecessary downtime.
